VISIT KEY INTERNATIONAL THIS WEEK AT BOOTH #2335
May 3-5, 2016
In Rosemont, IL
To See LIVE DEMOS Of Our CORA Ultra-Sanitary Butterfly Valves
|
Our technical sales reps will be available at he booth to answer any questions that you may have. We look forward to seeing you there!
|
CORA VALVES AT THE SHOW:

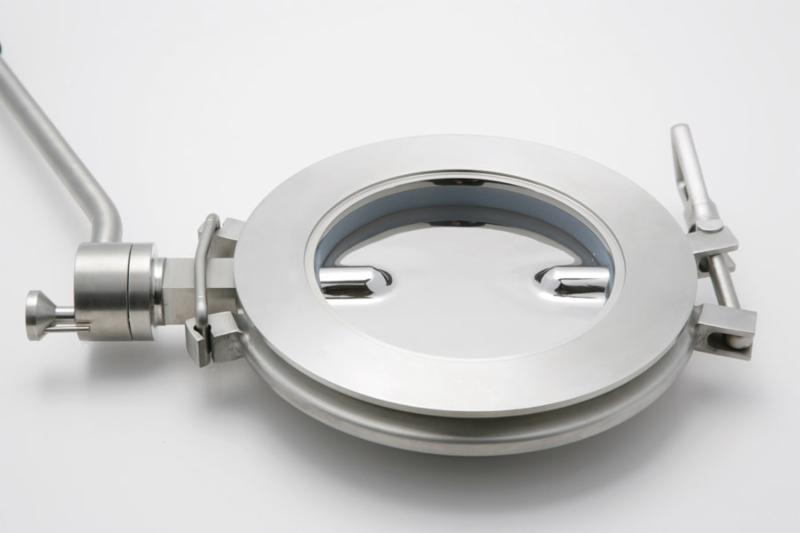

CORAŽ Model CV Ultra-Sanitary Flat Vane Butterfly Valve
For flow control of solid materials (powders and granulates).
- Specifically designed for stringent FDA & USDA sanitary requirements
- Easy to detach, disassemble and thoroughly clean
- Slender profile for weight and space savings
- Silicone seal
Options:
- Hastelloy construction
- Seal materials - EPDM, Viton or PTFE
- Multiple mounting configurations to fit your needs
|
CORA CRUSHER
The sanitary CORA CRUSHER is used for separation of lumped powders and oversized materials. Typical applications include
breaking up lumps as they are being discharged from a vacuum dryer as well as pre-breaking prior to a sieve or mill.
- Modular and compact construction used as a pre-breaker in conjunction with a sieve, mill, etc.
- Throughput range: 1,650 lbs./hour up to 6,500 lbs./hour
- Specifically designed for stringent FDA & USDA sanitary requirements
- Suitable for CIP and SIP
- Easy to detach, disassemble and thoroughly clean
- Improves product flow
Options:
- Electronic motor driven using a slide bracket and flexible coupling for quick disassembly
- Motor encased in stainless steel enclosure
|
CORA Model RV-SR Ultra-Sanitary Rotary Dosing Valve
The CORA RV-SR Rotary Dosing Valve is a solution designed for accurate dosing. It consists of two concentric rotors of different volume that are individually operated. The rotors
determine product flow and dosing. The CORA RV-SR Valve is typically used in feeding packaging machines, drum & bag filling systems, and dispensing.
Features:
- Designed for accurate dosing of product
- Has two rotors (primary rotor ensures continuous product flow and the secondary rotor ensures accurate dosing)
- Specifically designed for stringent FDA & USDA sanitary requirements
- Suitable for CIP and SIP
- Easy to detach, disassemble and thoroughly clean
Motion Drive:
- Pneumatic actuator (main rotor)
- Pneumatic or electric motor (secondary rotor)
- Pneumatic actuator (secondary rotor)
|

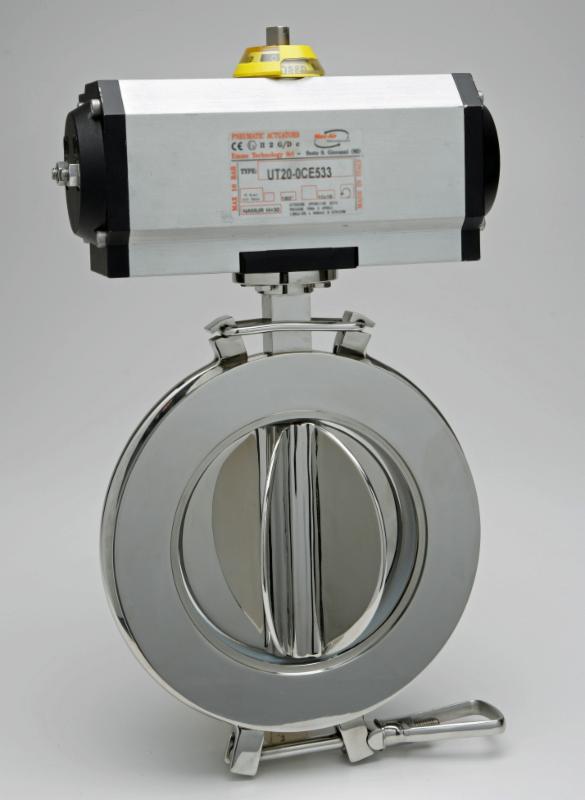

CORA Model RV Ultra-Sanitary Butterfly Valve
Multi-vane, oscillating disc, dosing valve for regulated discharge rate of powders and granulates.
Features:
- Specifically designed for stringent FDA & USDA sanitary requirements
- Easy to detach, disassemble and thoroughly clean
- 180° oscillating multi-vane disc (6-pocket)
- Improves product flow and regulates feed rate
- Silicone seal
Options:
- Hastelloy construction
- Seal materials - EPDM, Viton or PTFE
- Multiple mounting configurations to fit your needs
|
CORA Model SV, Silicone Coated Disc Valve
For intercepting the flow of tablets or capsules
Features:
- Designed for stringent FDA & USDA sanitary requirements
- Silicone coated stainless steel disc with flexible edges allows for operation without damage to tablets or capsules
- Easy to detach, disassemble and thoroughly clean
- Slender profile for weight and space savings
- Silicone seal
Options:
- Hastelloy construction
- Seal materials - EPDM, Viton or PTFE
- Multiple mounting configurations to fit your needs
|
CORA COMPENSATOR
The CORA COMPENSATOR is a flexible sleeve that connects two pieces of machinery when rigid
connections cannot be used due to vibration or off-axis. It is connected through a clamp band that can be opened easily when you need to sterilize the sleeve.
Features:
- Can tolerate light pressure and depression
- Designed for stringent FDA sanitary requirements
- Suitable for CIP or SIP
- Easy to detach, disassemble and thoroughly clean
- Also available with copper wire to ensure electrical conductivity
Materials:
- Translucent silicone with possibility of polyethylene net on the inside
- GMP design and construction
- Quick disconnect Lexan top cover
- Stainless steel vacuum connection for dust control
|
|
