Featured In-Stock  CORA Ultra-Sanitary Butterfly Valves
|
Our high quality, in-stock CORA Ultra-Sanitary Butterfly Valves are
available for immediate delivery in 2015!
We also have spare parts (compression seals, PTFE shaft bushings, etc.) available for order and delivery in 2015.
|
IN-STOCK CORA VALVES:

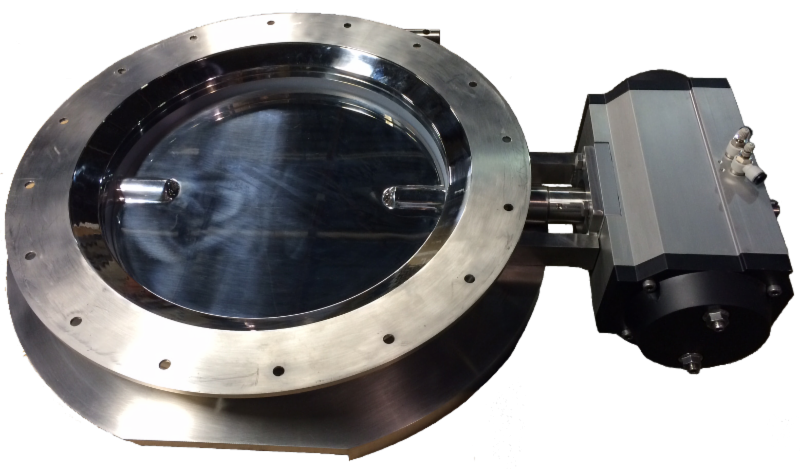

CORA® Model CV Ultra-Sanitary Butterfly Valve 6" or 8" Complete Valve Assemblies In-Stock
For flow control of solid materials (powders & granulates) specifically designed for stringent sanitary requirements.
- Specifically designed for stringent FDA & USDA sanitary requirements
- Easy to detach, disassemble and thoroughly clean
- Slender profile for weight and space savings
Construction:
- Body & butterfly - 316L SST
- Seal - FDA food grade silicone
- Bushings - PTFE
- Clamp band - 304 SST
- Operating lever with position locking pin - 304 SST
- Optional pneumatic actuator, 90° double acting or spring return - anodized aluminum body
Finish:
- Body & external #4 sanitary (Ra = 50 u-in.)
- Butterfly & internal #7 mirror (Ra = 20 u-in.)
Options:
- Hastelloy construction
- Seal materials - EPDM, Viton or PTFE
- Multiple mounting configurations to fit your needs
|

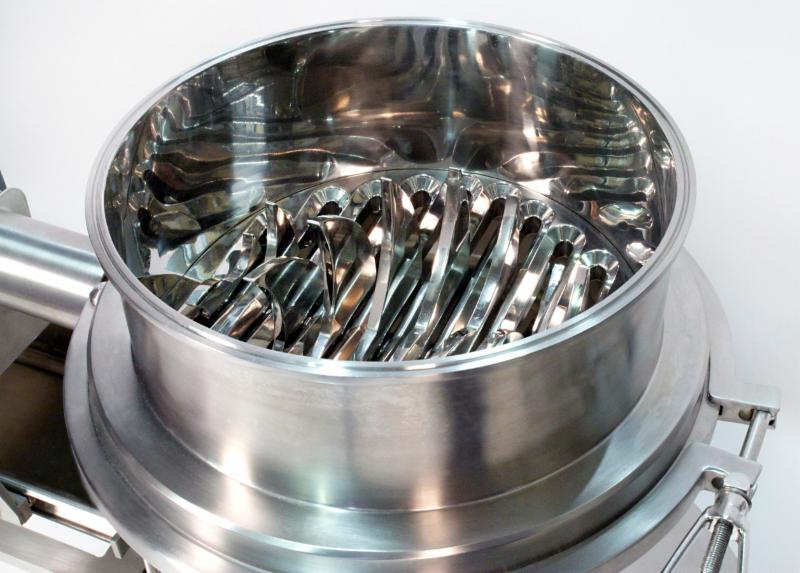

CORA CRUSHER
The sanitary CORA CRUSHER is used for separation of lumped powders and oversized materials. Typical applications include
breaking up lumps as they are being discharged from a vacuum dryer as well as pre-breaking prior to a sieve or mill.
- Modular, compact construction used as a pre-breaker in conjunction with a sieve, mill, etc.
- Throughput range: 1,650 lbs./hour up to 6,500 lbs./hour
- Specifically designed for stringent FDA & USDA sanitary
requirements - Suitable for CIP and SIP
- Easy to detach, disassemble and thoroughly clean
- Improves product flow
Construction/Finish:
- AISI 316L Stainless Steel· #7 mirror finish (Ra=20u-in) on product contact surfaces
- #4 finish on external surfaces (Ra=50u-in)
- cGMP compliant with FDA CRF 21, 177.2600
Options:
- Electronic motor driven using a slide bracket and flexible coupling for quick disassembly
- Motor encased in stainless steel enclosure
|
CORA Model RV-SR Ultra-Sanitary Rotary Dosing Valve
The CORA RV-SR Rotary Dosing Valve is a solution designed for accurate dosing and consists of two concentric rotors of different volume individually operated, which
determine product flow and dosing. The CORA RV-SR is typically used in feeding packaging machines, drum & bag filling systems, and for dispensing.
Features:
- Designed for accurate dosing of product
- Has two rotors (primary rotor ensures continuous product flow and the secondary rotor ensures accurate dosing
- Specifically designed for stringent FDA & USDA sanitary requirements
- Suitable for CIP and SIP
- Easy to detach, disassemble and thoroughly clean
Construction/Finish:
- AISI 316L Stainless Steel
- #7 mirror finish (Ra=20u-in) on product contact surfaces
- #4 finish on external surfaces (Ra=50u-in)
- Seals: Translucent silicone, EDPM, FKM
- cGMP compliant with FDA CRF 21, 177.2600
Motion Drive:
- Pneumatic actuator (main rotor)
- Pneumatic or electric motor (secondary rotor)
- Pneumatic actuator (secondary rotor)
|

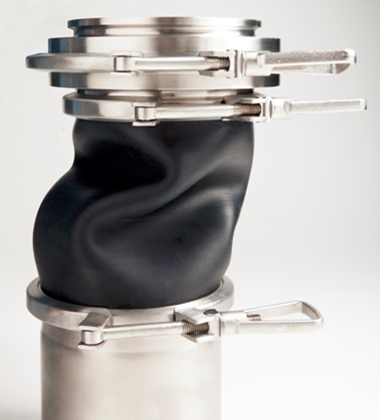

CORA COMPENSATOR
The CORA COMPENSATOR is a flexible sleeve that connects two pieces of machinery when rigid
connections cannot be used due to vibration or off-axis. It is connected through a clamp band that can be opened easily when you need to sterilize the sleeve.
Features:
- Can tolerate light pressure and depression
- Designed for stringent FDA sanitary requirements
- Suitable for CIP or SIP
- Easy to detach, disassemble and thoroughly clean
- Also available with copper wire to ensure electrical conductivity
Materials:
- Translucent Silicone with possibility of polyethylene net on the inside
- GMP design and construction
- Quick disconnect Lexan top cover
- Stainless steel vacuum connection for dust control
Available Sizes:
- 4" (100mm), 6" (150mm), 8" (200mm),
- 10" (250mm), 12" (300mm)
- Length: Up to 4 meters
|
|
