May, 2015


Featured Products from



CLEAN, INSPECT, CONNECT & TEST

Over 70% of network errors are caused by contaminated connectors. Contamination can be from dirt and debris on the end-face of the connector, or it can also be from scratches and defects during manufacturing and/or installation. Cleaning the connector is essential in either eliminating and/or reducing some of the known contamination that will effect and impair the network transmission.

Cleaning alone will not ensure a good connection which negatively impacts the signal quality. The connector endface must be inspected with a video inspection probe to identify the physical quality of the connector endface and the backplane connector through the mating sleeve prior to connection.

A fiber launch box is inserted between the OTDR and the Device Under Test (DUT) in order to characterize the quality of the"first connector". By not using a sufficient amount of fiber and/or fiber launch box after the OTDR, the "first connector" can fall into a "dead zone" that the OTDR cannot see therefore not have the ability to evaluate the quality of the connection.

The PRO-5350 Series OTDR is specially designed for tough outdoor jobs. IP65 protection level, lightweight, easy operation, TFT color touchscreen low-reflection LCD and more than 12 hours working period make it perfect in field testing.



Precision Rated Optics, (PRO), has developed the following CLEAN, INSPECT, CONNECT & TEST solution for optimal network testing.


Over 70% of network errors are caused by contaminated connectors.The contamination can be from dirt and debris on the end-face of the connector, or it can also be from scratches and defects during manufacturing and/or installation. Cleaning the connector is essential in either eliminating and/or reducing some of the known contamination that will effect and impair the network transmission. The PRO-CK-CLEAN-01 enables the technicians to prepare the fiber cable - from stripping and cleaning through inspection, connection and test.
400x Microscope for viewing connector endfaces.
Launch BoxThe use of a launch box effectively moves the Dead Zone away from crucial connections and splice points, providing your trace with accurate test results in areas where loss must be calculated.
The PRO-5350 Series OTDR is specially designed for tough outdoor jobs. IP65 protection level, lightweight, easy operation, low-reflection LCD and more than 12 hours working period make it perfect in field testing.
The OBL-201A is a high-performance optical fiber troubleshooters for locating fiber breaks and imperfections. Break results and details are displayed on a large LCD screen.


Call your Precision Rated Optics sales representative for more information.




Affordable and Loaded with Options

Save Money! Save Time! Work with a PRO!

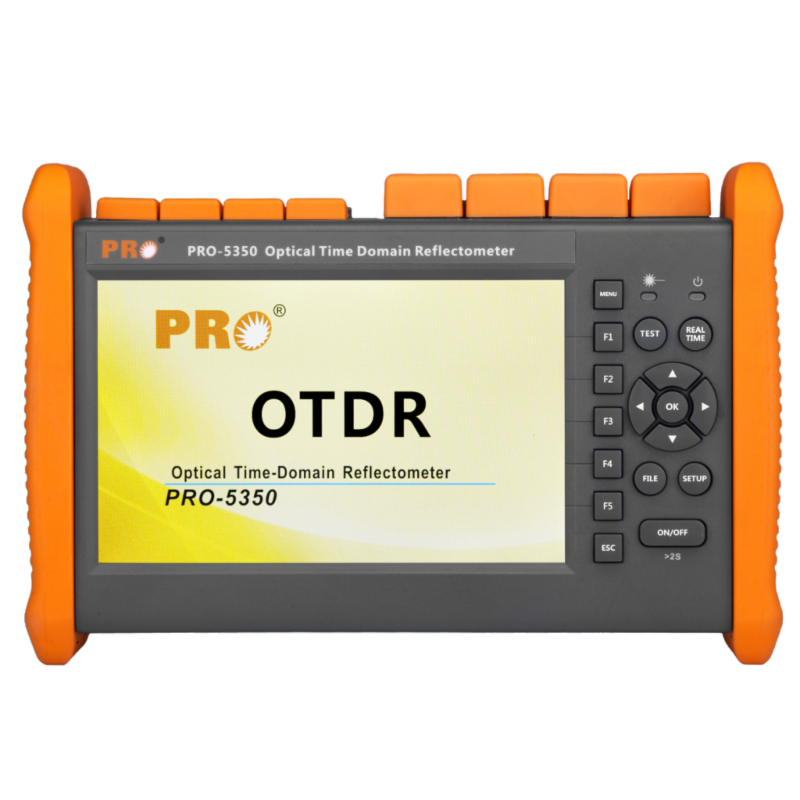

The PRO-5350 Series OTDR delivers powerful testing on a budget
Even at it's base configuration, the PRO-5350 Series OTDR is a powerful and effective device for OTDR testing. The PRO-5350-TS-26 features a 26/24dB dynamic range and 1310/1550nm. One of the huge differences between the PRO-5350 Series OTDR and competing brands is the major storage capacity of 40,000 groups of curves, which are easily unloaded with a USB cable.  This lightweight OTDR is perfect for FTTx, CATV, Access, LAN, Metro and PON Networks. The PRO-5350 Series OTDR is specially designed for tough outdoor jobs. IP65 protection level, lightweight, easy operation, low-reflection LCD and more than 12 hours working period make it perfect in field testing.

See the chart below for product comparison.


Brand
PRO

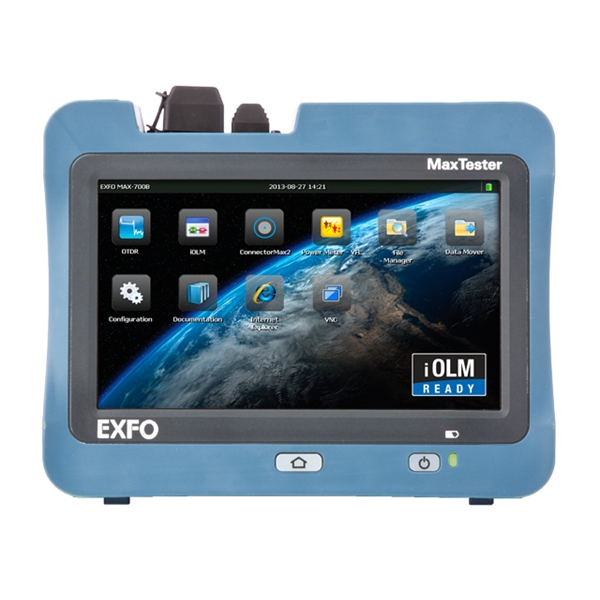

EXFO

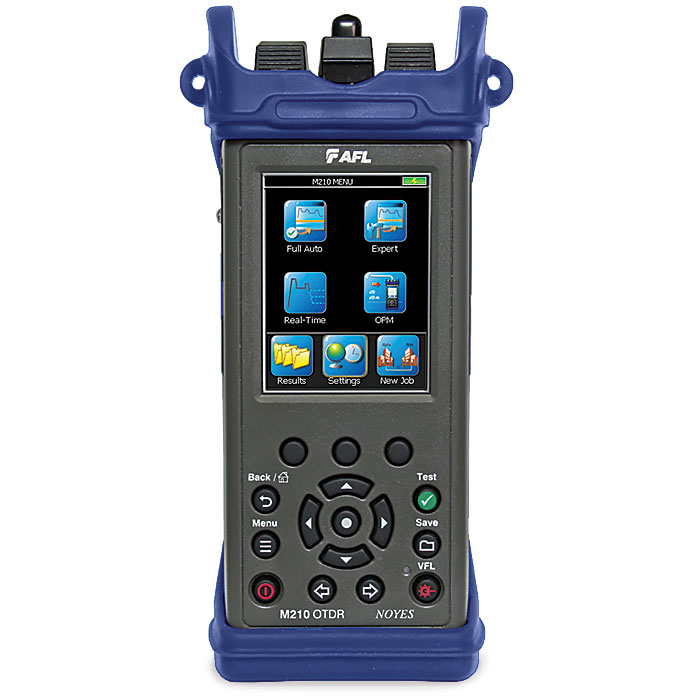

NOYES




Item / Model No.
PRO-5350-TS-32*MAX-715B-M1M210-20U-01
Price
$3,770
$4,795$4,796
Dynamic Range (dB)
32/30
30/2830/30
Wavelengths (nm)
1310/1550
1310/15501310/1550
Pulse Width (ns)
3-20,0005-20,00010-10,000
Event Dead Zone (m)
1.511.5
Maximum Measurement Range (km)
240208250
Memory
40,00020,0001,000
Dimensions
9.9" x 6.6" x 2.9"7.8" x 6.1" x 2.8"8.8" x 4.3" x 2.8"
Weight
1.5 lb
2.8 lb3 lb
Touchscreen


Power Meter Option



Stable Light Source Option


NO
VFL Option



Inspection Scope Option

NO
NO

 *Other configurations are available
OBL-201A Optical Break Locator - Economical Fiber Testing
High-Performance Optical Break Locating
OBL-201A Optical Break Locator
The OBL-201A Optical Break Locator from Precision Rated Optics is an affordable and practical tool that every technician should have. While an OBL does not replace an OTDR, it allows a technician to quickly and easily find major faults and expedite repairs.

The OBL-201A utilizes much of the same technology used in an OTDR, such as a graphical representation of the fault location, but at a much lower price point than an OTDR.

Read More: Product Page


PRO-790 Fusion Splicer - Compact & Rugged
For all FTTx Applications

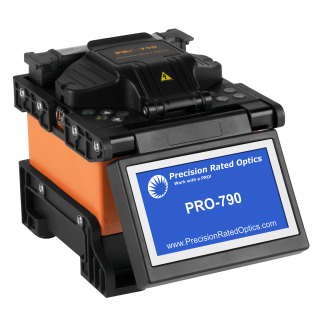

PRO-790 Core Alignment Fusion Splicer
The PRO-790 is a perfect complement to our existing Fusion Splicer product line. The PRO-790 is designed to be lightweight (4.5 lbs) and can fit in the palm of your hand (just under 5 inches). The PRO-790 offers adjustable fiber holders which can accommodate 250μ, 900μ and 3mm fiber. Additionally, an SOC (Splice-On Connector) holder is also available. This unit provides performance and results typically only found in splicers costing thousands of dollars more!

Read More: Product Page

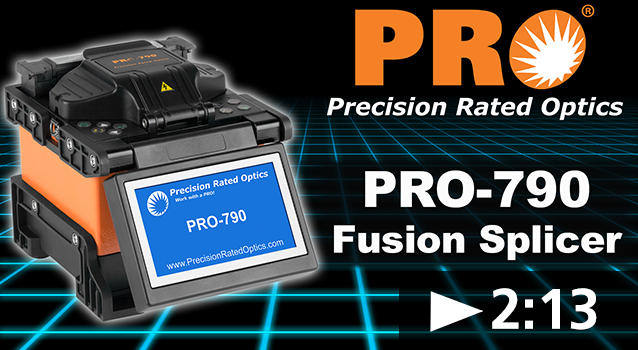

To view the product overview video, click the video thumbnail on the left or visit:

Heart of America Chapter Vendor Day & Cable-Tec Games
Hilton Garden Inn - Independence, MO
Tuesday May 12, 2015

Visit us at the 11th Annual Heart of America SCTE Chapter Vendor Day and Cable-Tec Games. The vendor day will be an all-day event with technical seminars and open access to vendor exhibits.



2015 Product Catalog
Our 2015 Product Catalog features some amazing new products, as well as some updated products featuring Bluetooth capability, touchscreen interfaces, FiberBase compatibility and more!

Take a look!
