Greetings!

Welcome to New Scale News, your monthly update on micro-mechatronic systems and applications. This month we feature our miniature two-mirror beam steering system developer's kit.
(photo) Miniature beam steering system
New Dev Kit: Miniature two-axis beam steering system boasts smallest size, easiest operation
Miniature piezoelectric smart stages with built-in controller enable simple, precise point-to-point beam steering

The DK-M3-RS-U-2M-20-L beam steering system features two miniature piezoelectric rotary stages with embedded closed-loop controllers. Along with smallest system size, this makes for fast, easy integration into your system.

Each smart stage rotates a pre-mounted aluminum-coated mirror +/- 20 degrees at up to 1100 degrees/second with angular resolution of 0.05 degrees (1 mrad) for precise, point-to-point positioning or dynamic scanning up to 100 Hz.

With only 3.3 VDC input it is suited for handheld and portable instruments. Applications include medical lasers and imaging systems, industrial measurement and spectroscopy instruments, and laser printing and engraving.

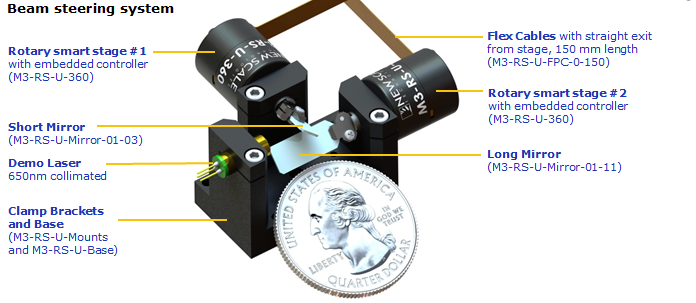

(Drawing) M3-RS-U-2M dev kit components
Patented piezoelectric motors along with position sensors, bearings, drive electronics and embedded firmware are all integrated into each miniature rotary stage. The positioner accepts direct input of high-level digital motion commands from a system processor via I2C, SPI, UART or analog servo interface.

DK-M3-RS-U-2M-20-L Specifications
  • Smart stage size: 12 mm diameter
  • Beam size: up to 2 mm diameter
  • Mirror range: +/- 20 degrees
  • Speed: up to 1100 deg/sec
  • Absolute encoder resolution: 0.025 degrees
  • Accuracy: 0.25 degrees
  • More specifications

Developer's Kit price and availability

The DK-M3-RS-U-2M-20-L Beam Steering Developer's Kit includes two rotary smart stages with mounted mirrors, a 650  nm collimated laser, brackets and base, demo board, cables, USB adapter and software for system evaluation and development. Developer's Kits are available from New Scale Technologies at $3,450 with delivery from 8-12 weeks.


Email us to order your kit or call +1 (585) 924-4450


VIDEO: Miniature beam steering developer's kits

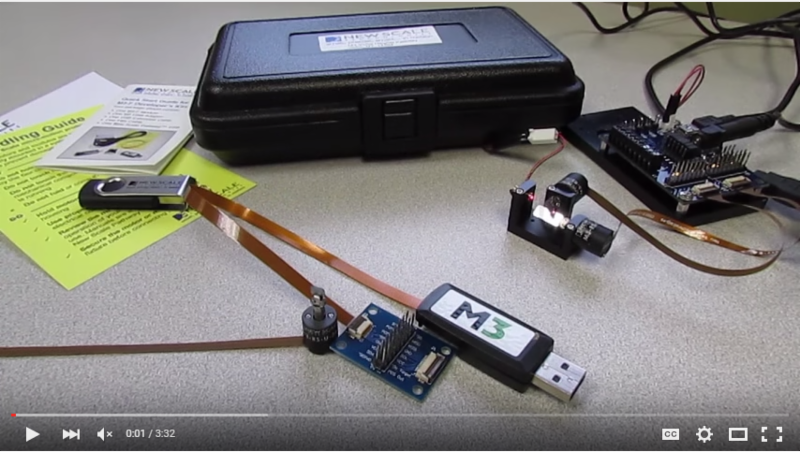

(VIDEO) M3-RS beam steering developer's kits
The two-axis beam steering system and one-axis mirror positioning system developer's kits include demo boards and USB  connection for easy evaluation using New Scale Pathway software on your PC. Watch the video (3:32)
