PROMATIC TRANSPORT MODE & SPRING CHANGE PROCEDURE ON RH TRAP
Standing behind the trap, disarm trap using the disarm switch.

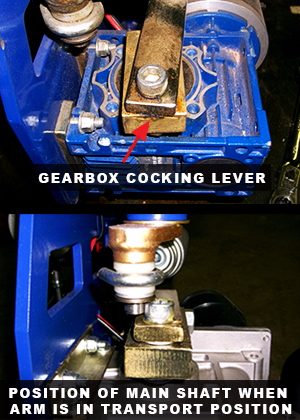

Bump the disarm switch until the gearbox cocking lever is in the 11:00 or 12:00 o'clock position (looking at it from the back of trap over the top side of the carousel).
While still standing at the rear of the trap, pull the arm with your left hand towards the center of the trap. You should feel the arm go over center and spring pressure should be felt on the arm as the main shaft presses against the gearbox cocking lever.
If you do not feel the spring tension, force the main shaft against the gearbox cocking lever, bump the disarm switch lightly, and push the arm in again.
|
