A trigger code is a unique code number required to register your GAGEtrak license. If you don't obtain a trigger code within 30 days of installing GAGEtrak, you will receive a message from GAGEtrak saying that your trial period has expired. Obtaining a trigger code will remove this expiration date. You may also require a new trigger code after reinstalling GAGEtrak because of a workstation upgrade or if GAGEtrak is moved to a new workstation.

Click here for trigger code instructions.

One of the great features in GAGEtrak is the Dashboard which organizes and presents important, time-sensitive information in an easy-to-read format. In the last Tech Tip, we covered the Calibrations Due List on the Dashboard; now, let's explore the pie charts.

The pie charts display the Top 5 Gage Status counts in your system and graphically indicate the number of gages that are coming due, the number of gages that are past due and the number of gages that are not currently due within the date range specified in Settings. It is important to understand, however, that the pie charts will only display gages with a status of Active or any other status for which you have checked the Include in Lists of Due Gages checkbox within Setup -> Status IDs. This is a new feature in GAGEtrak 7 that allows the user greater control over the disposition of their gages. So, in this example, the charts will show active and employee-owned gages:


Navigate to the Settings -> General tab -> Dashboard Due List pane. The settings chosen here dictate how the program displays due, past due and not due.

• Start Frequency: when set to 1 Day, the due list will start at today's date.
• End Frequency: when set to 30 Days, for instance, the list will show all gages due within the next 30 days.
• Include Past Due: checking this checkbox nullifies the Start Frequency, as this will make the list include all gages that are past due and currently due, up to the End Frequency.

Navigate to the Main Records -> Gages -> Schedule tab. The Next Due Date field is highlighted in yellow for the sake of quick visibility. Per the settings shown in the General tab above, this form will show the following:

• A yellow Due box is shown under the Next Calib button if the due date is within the next 30 days. Note: This feature is not available in versions of GAGEtrak earlier than v7.0.4.



• A red Past Due box is shown under the Next Calib button if the gage is past due. Note: As of GAGEtrak 7.0.4, the Past Due flag will not appear until the day after the gage has come due.



• No box is shown under the Next Calib button if the due date is more than 30 days out, as the gage is not yet considered due.

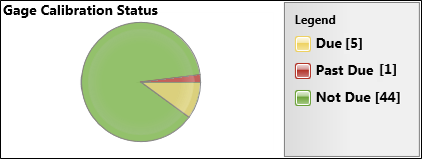

Now, go back to the Dashboard and look at the Gage Calibration Status pie chart and legend.

• Yellow represents gages that are due based on the End Frequency you entered.

• Red represents gages that are past due (if you have checked the Include Past Due checkbox).

• Green represents gages that have a Next Due Date more than 30 days out, i.e., not yet due.

The Dashboard makes it easy to see at a glance what kind of workload you have for the day and in the near future so that you can better balance the workload among your available resources. We encourage you to explore the additional capabilities of your GAGEtrak software and as always, keep an eye out for future Tech Tips.
