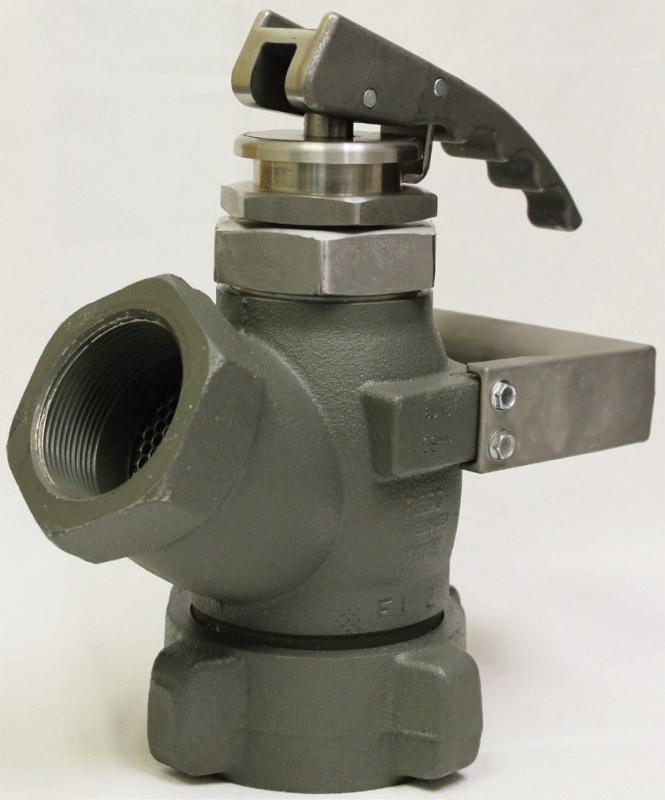

RegO UPDATES A7914 ACME Low Emission Hose End Valve for Bobtails & Transports
New 2" FNPT x 3-1/4" ACME LOW EMISSION Hose End Valve
LESS Than 2 CCs at Disconnect
Complies with CARB Regulations
|
Application
The A7914 minimum loss valve is designed to reduce the amount of product vented when disconnecting bobtail and transport loading hoses. This valve provides a full-on flow when pressing the release trigger and the lifting of an easy grip handle.
 Lowering the handle will immediately stop flow and lock the lever in the closed position. This valve was designed to be used with our 6588LE and 6589LE 3¼" M-ACME minimum loss filler valves but can be used with any standard 3¼" Male ACME connector. Features - Complies to CARB regulations
- Discharges less than 2 CCs at disconnect
- Contoured handle rotates 360° large easy to turn ACME swivel connector.
- Self-locking handle is operator opened and closed designed to prevent accidental opening of the valve.
- Bypass mechanism in the seat area allows the upstream pressure to quickly equalize when the handle is partially moved to the open position.
- Spring loaded Teflon "V" packing for bonnet/stem assembly provides long service life.
Materials |
Body
|
Ductile Iron
| |
"V"-Rings
| Teflon
| Stem
| Stainless Steel
| ACME Connector
| Cadmium Plated Ductile Iron
| Seal Housing
| Stainless Steel
| Bonnet
| Cadmium Plated Steel
| Lever
| Stainless Steel
| Seat Disc
| Synthetic Rubber
|
|
Part #
|
Inlet Size
| Outlet Size
| Locking Handle
| Flow at 1 PSIG (Cv) Pressure Drop* GPM Propane
| Flow at 10 PSIG (Cv) Pressure Drop* GPM Propane
| A7914
| 2" FNPT
| 3 1/4" F-ACME
| YES
| 55
| 174
|
* To obtain approximate flow at other than 1 PSIG drop, multiply flow in table by square root of pressure drop. Example A7914 @ 9PSIG drop = 55 x sq.root of 9 = 165 GPM/propane.
|
|
