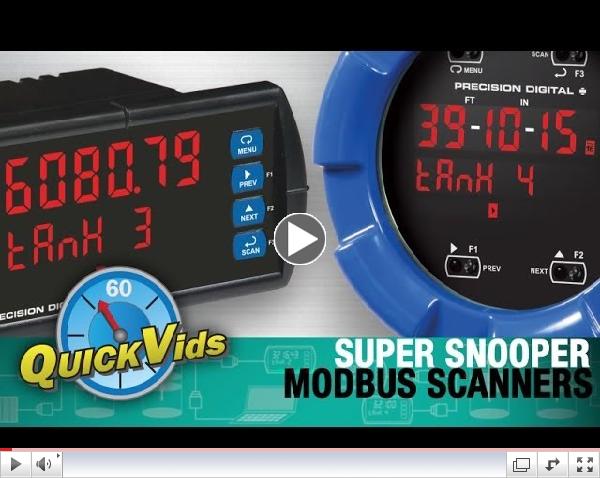

ModBus Process Variable Scanner and Display

The PD6088 and PD6089 ModBus Super Snooper Scanners offer the ability to scan and display up to 16 process variables using RS-485 serial communication. They are capable  of being programmed as a ModBus RTU master, slave, or snooper.



Features Include:
  • Up to 3 Analog Outputs
  • Up to 4 SPDT and 4 SPST Relays
  • Powerful Math Functions
  • Customizable Displays with tags and units for each process variable
  • Standard SunBright Display
  • ScanView Software for convenient programming
  • Universal 85-265 VAC or 12/24 VDC input power
    Click above to view intruductory video
    Click above to view introductory video



Radar Level Transmitter for Severe Service


LR250FES

Siemens has added a new product to their line of radar level transmitters, the SITRANS LR250 FEA. The LR250 FEA is our standard 25 GHz transmitter with a flange encapsulated antenna. This new type of antenna provides a solution for our customers with corrosive materials because there are no metal wetted parts. The LR250 FEA uses an FDA approved TFM 1600 PTFE lens for use in chemical and sanitary environments where aggressive and corrosive materials are used. It also can handle high temperatures up to 338 F, and high pressures up to 232 PSIG.



Click to submit level application request

XCELL SENSORS ENABLE PORTABLE GAS

DETECTION WITHOUT THE PAIN

Confined space monitors have traditionally been maintenance headaches - until

Altair-4X Monitor

now. MSA XCell Sensors are a breakthrough in sensor design, enabling faster response and shorter span calibrations - savings calibration time and maintenance budgets. ASIC (Application Specific Integrated Circuit) technology inside each sensor drives the sensor and converts its output to a digital signal. This chip enables the XCell Sensor to perform real time environmental corrections, provide plug and play capabilities and deliver greater RF immunity.



The MSA XCell Oxygen Sensor uses a non-consumable chemical reaction. Oxygen is converted to water and then back to Oxygen. The sensor does not "use itself up" each time it sees Oxygen, generating a much longer shelf life and overall life span.



XCell Sensors

The X Cell technology incorporated in the MSA Altair 4X and Altair 5X Monitors. The bottom line for the XCell Sensor technology is this:



Four year expected sensor life on LEL, O2, CO, H2S, SO2, IR with a standard three year instrument warranty and replace sensor indication.



Three year expected sensor life on NH3, CL2 with a standard two year instrument warranty and replace sensor indication




New Control Valves from Jordan Panel Flow Conditioners


Jordan Valve is proud to announce the introduction of the Jordan  Control Valve Series (JCVS). We are excited about the new additions  to our Jordan Valve product portfolio, as the JCVS greatly enhances our industrial control valve offering. We now offer globe style  control valves to 24" in a variety of materials, pressures to ANSI  2500, noise mitigation and anti-cavitation trims. Additionally, we  have a rotary V-Ball available in 2" - 12", actuators, positioners  and other accessories.





 Submit Control Valve application inquiry











Veris Accelabar Flowmeter

The Accelabar consists of a unique toroidal nozzle design and a Verabar averaging pitot. The nozzle has a patented "settling distance" that accelerates, linearizes and stabilizes the velocity profile sensed by the Verabar. The Verabar located within the nozzle accurately measures and significantly increases the differential pressure output to increase the operating range, with turndowns of up to 65:1.

 Veris Accelabar

The Accelabar can be used in extremely limited straight run piping configurations. The straight run is integral to the meter. No additional straight run is required. The Accelabar is ideal for the following flow applications:



- Steam (saturated and superheated)

- Bio Gas

- Methane

- Hydrocarbons

- Condensate



Click to view video presentation of Accelabar
