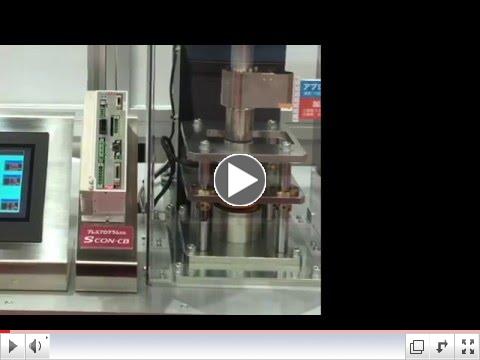

Servo Press has superior loading accuracy

Servo Press has superior loading accuracy

 Facebook  Twitter   Blog   Youtube
Latest on Facebook
Do you want to be well trained in vacuum technology?
Numatics Logo CC-Link IE Field

Numatics G3 nodes for CC-Link IE Field

CC-Link IE Field™  is an open standard 1 Gbps Ethernet Manufacturing network that enables seamless data communication from the plant-level enterprise network to the production floor network.

Numatics' G3 nodes for CC-Link IE Field  have an integrated graphic display and are capable of addressing combinations of up to 1200 outputs and 1200 inputs. CC-Link IE Field™ is based on 1 Gbps Ethernet standards and complements them with specific protocols and mechanisms to achieve real time performance.

New HPG with Helical Gearing
Delivers high-torque and high-accuracy in a compact package

The HPG-R Helical Harmonic Planetary® gearhead delivers High-Torque and High-Accuracy in a compact package. The Helical gear design combines quiet operation with higher torque when compared to the standard HPG Series.

The gearhead incorporates continuous backlash compensation that ensures low backlash throughout the life of the gear. A large Cross Roller bearing serves as the output flange and can directly support large loads with high moment stiffness. HPG planetary gears are available with a flange output, smooth output shaft or a shaft with a key and tapped center hole.

IAI Logo RCS3 ROBO Cylinder with Load Cell
Servo press compatible

The RCS3 is a compact and low-thrust rod type actuator
that can even be used for simple pressing. The high-precision position control enables easy adjustment of the push force and the position control.

The servo press specification has been expanded. With a load cell equipped as a standard feature, precision push force control is now possible, which is typically difficult for oil-hydraulic equipment.

RCS3 side-mounted motor rod types have been added, allowing you to select from a 200N to 50000N range. The development of a large variety of models allows you to pick models that suit your applications.  High-precision loading repeatability of ±0.5% is possible using the feedback data from the dedicated load cell installed in the actuator.

more information
Carlo Gavazzi logo
New Stainless Steel Photoelectric Family
Designed to withstand harsh environmental conditions
The PD30ET stainless steel sensors are built with high-quality materials and designed for harsh environments. They are designed for use in environments where high-pressure cleaning, cleaning agents and disinfectants are used on a daily basis.

The strong stainless steel (AISI316L) together with high-quality plastic materials and PES sealings of FKM ensure a safe and excellent mechanical resistance. The compact sensor design is ideally suited to confined spaces.

* Please note that not all products may be available in Northern California region,
    but we encourage you to inquire with us for more information
