Ultra-small Brushless Servo Motors





 Facebook  Twitter   Blog   Youtube

Video

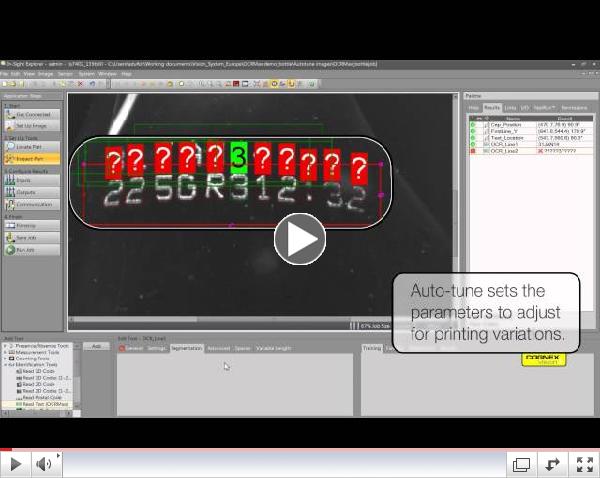

OCRMax with auto-tune demonstration
Easy, fast setup
OCRMax with auto-tune demonstration
Dorner logo New 2200 Series SmartFlex Conveyor

Transfer small parts seamlessly and efficiently



The 2200 Series SmartFlex flexible chain conveyor platform excels at small-part handling, thanks to its power transfer features that smoothly transfers parts as small as 3" diameter on and off the conveyor for improved performance.



The 2200 Series SmartFlex is a high-performance, flexible, modular chain conveyor that can be configured to wrap around machinery and equipment in the packaging, food, medical and assembly industries.



more information >

CTC Logo Integrating EtherCAT Supported Devices

CTC EtherCAT Master offers unsurpassed flexibility



CTC has fully integrated EtherCAT support into our programming environment, by pre-engineering support for the most popular EtherCAT slave devices. Through auto-discovery, the system automatically determines what specific devices are on the EtherCAT network and automatically configures the master to talk to them. This eliminates a time-consuming and potentially error-prone step of having to use a configurator to manually set up your network.



EtherCAT-based drives and I/O points appear in the programming environment along with any other drives and I/O in your system, and are programmed as though they were local devices.

  • Copley Controls - Accelnet
  • Yaskawa - Sigma 5
  • WAGO I/O



more information >

Piab logo piSECURE Vacuum Pump

Creates safe vacuum in case of system failure



piSECURE is a decentralized vacuum pump for sealed applications with high safety requirements in case of power or system failure. The safety function is based on a separate extra sealed vacuum non-return valve (check valve).



piSECURE utilizes COAX® technology as well as an improved sealing capability for safety and automatic energy saving system for maximum efficiency and reduced energy consumption.  piSECURE can advantageously also be used in robot handling applications of high value sealed objects, i.e. high cost for dropped part in case of power failure. Examples are shaped glass and metal sheets in body assembly and general assembly of cars.



  • 5x better sealing performance than US lifting norm (ASME Std B30.20) 30x lifting force EU norm (EN 13155)
  • Energy reduction of 90% vs standard generator
  • Lightweight for End-of-Arm-Tool mounting

IAI Logo Direct Drive Motor

High torque, high speed rotary table



The DD Direct Drive Motor is a rotary actuator that directly drives a rotary table with a motor without using any speed reducing mechanism such as a belt or reduction gears.  Eliminating the speed reducing mechanism translates to high speed and excellent response, while the compact actuator lets you reduce the size of your equipment.



High torque - high payload

DD can generate a maximum instantaneous torque of 25.2N-m with a payload of 90 kg (based on a rectangular solid shape of 200mm x 200mm in size).



High acceleration/deceleration
Shorter positioning time means shorter cycle time and greater productivity


Compact Size
Measuring 180mm x 180mm x 53mm the DD actuator is a compact size

* Please note that not all products may be available in Northern California region,
    but we encourage you to inquire with us for more information
