Do You Know about SAM?
Scanning Acoustic Microscopy

1. What's SAM?

Scanning Acoustic Microscopy (SAM)
- Is a non-destructive analysis  shows unique insight on the integrity of package and device construction.
- Can detect void formations, delaminations, cracks and fractures or other hidden internal defects.

2. Types of Scan used for SAM

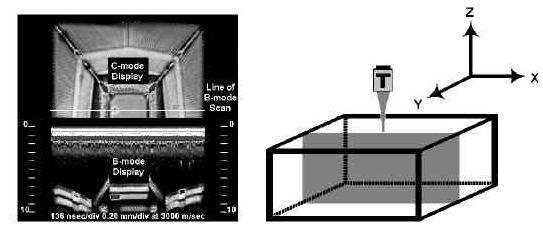

B-Scan

- Generates a top-down or X-Z axis cross-sectional image of the parts.
- Acoustic data collected along an X-Z or Y-Z plane versus depth using a reflective acoustic microscope (pulse/echo system).

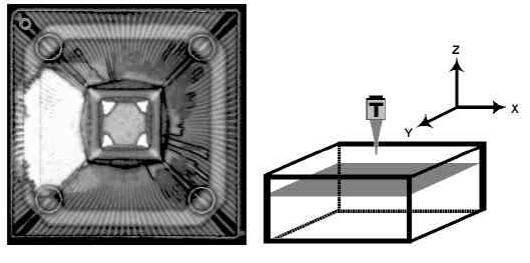

C-Scan

- The C-Scan or pulse-echo provides a planar view image at a specific depth.
- Illustrations of delaminations and void formation can be generated.
- Acoustic data collected in an X-Y plane at depth (Z) using a reflective acoustic microscope (pulse/echo system)

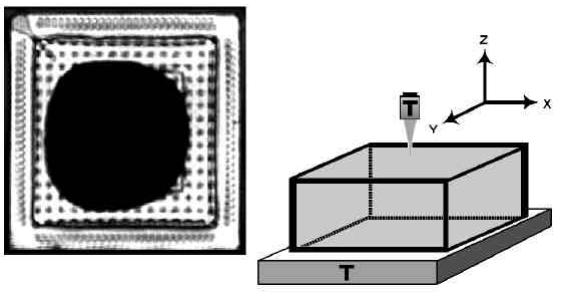

T-Scan (Through Scan)

- Shows a two-dimensional (area) image of transmitted ultrasound through the complete thickness/depth (Z) of the sample/component
- Acoustic data collected in an X-Y plane throughout the depth (Z) using a through transmission acoustic microscope system





Follow Us on WeChat
This Week in the Lab...
Do You Know about SAM?
This Week's Substandard Parts List
Inspection Accept
79%
Electrical Testing Pass
69%
This list contains the devices that have had over 5% failure in electrical testing within one week.

Click below link to get the Substandard Devices Details (part number, MFG, Date Codes, Failure Rate and Failure mode).

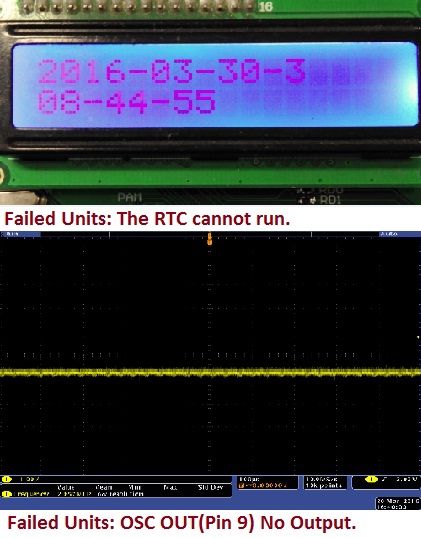

 Intersil ICM7170AIBG Failure - No output frequency on OSC_OUT(Pin9).
