PTPR & CVPD Test Profile

Definitions:

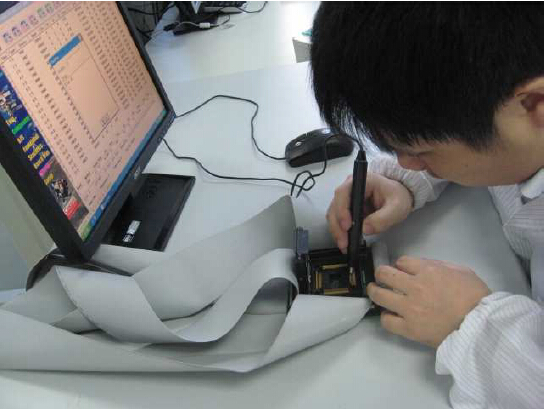

Pin-to-Pin Resistance and Clampdown Voltage of Protective Diode testing, or PTPR/CVPD, is a preferred testing option for high pin count and complex
components where set-up for functional testing can be prohibitively long and expensive.

* Fast Set-up & Programming Time
* Fast Test Cycle Time
* Low Price
* High Degree of Reliability

Complete Testing Profile includes:
* Pin-to-Pin Resistance Test
* Clamp-down Voltage of Protective Diodes
* Decapsulation Analysis (recommended)
* Golden Sample Comparison(recommended)
The #1 Cause of Component Failure is Opens and Shorts Caused by Overvoltage and Damaged Hardware. PTPR/CVPD Catches It.


Clampdown Voltage Protection Diode (CVPD) testing includes:
* Continuity (Pin Opens & Shorts)
* Damaged Protection Diodes

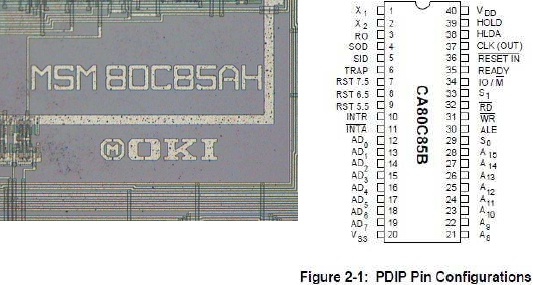

* Misalignment & Disoriented Dice/Lead  Frame
* Internal circuitry damage

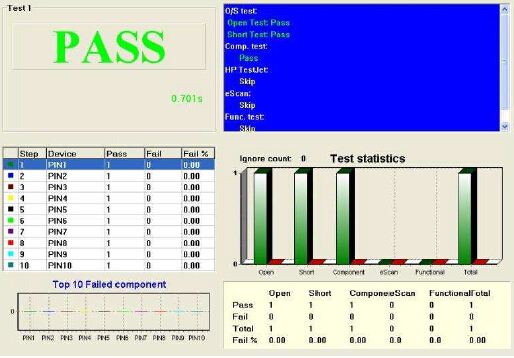

Pin-to-Pin Resistance (PTPR) testing:
* Adjacent pin shorts
* Opens between ground pins
* Resistance between two pins will be measured
* Identifies the #1 Cause of Component Failure

Notes: PTPR/CVPD test is the step between simple curve trace and functional or parametric testing on complex devices where set-up time and cost may be prohibitive. And this test covered all of the pins whereas CT targets only a limited number of pins.


This Week in the Lab...
PTPR & CVPD Test Profile
This Week's Substandard Parts List
Inspection Accept
86%
Electrical Testing Pass
65%
This list contains the devices that have had over 5% failure in electrical testing within one week.

Click below link to get the Substandard Devices Details (part number, MFG, Date Codes, Failure Rate and Failure mode).

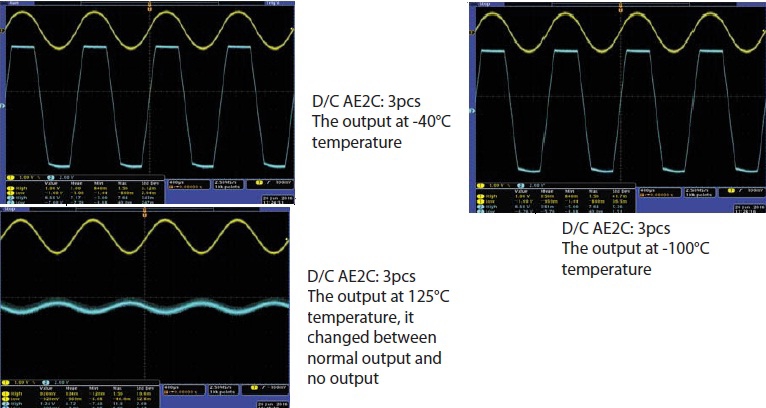

   Texas Instruments OPA561PWP Failure - The Vout was more than +/-6.5V with 12Ω load at room temperature -40°C and 100°C, but no output repeatedly even though there was no load at 125°C.
