Week 26 Quality Report

White Horse Laboratories has been publishing our Weekly Quality Reports since 2009, which are a listing of the devices that have had over 5% lot failure in electrical testing or the buyer has rejected the lot following results of inspection methods

While this list does not imply that the balance of devices within a lot are defective, and is not exhaustive (for example, a 5% failure rate may be too high or some buyers may accept devices in a physical condition that others would not), it is intended to an indicator as to what is going on in the market and is a reminder to be aware of the risks of sourcing without adequate quality control measures in place.

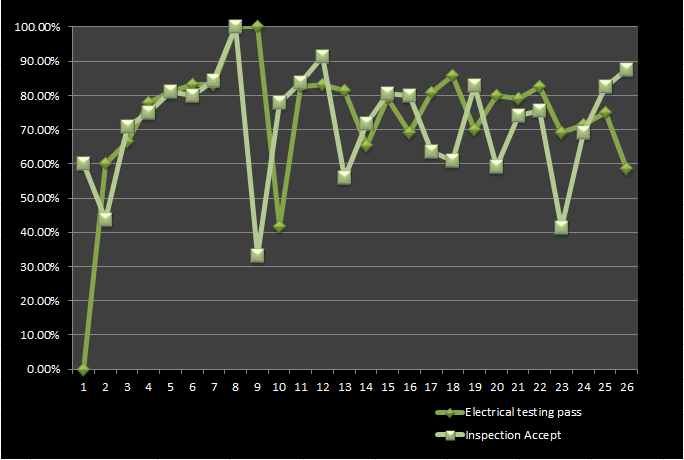

Week 26

Inspection Accept

88%

Electrical Testing Pass

59%

This Week in The Lab...

Week 26 Substandard Parts List

Substandard Parts Archive

White Horse Laboratories' Quality Report

Week 26 Quality Report

Substandard Parts List

STMicroelectronics ST10F168-Q6 (Date Code 749) - 43% Failure Rate

- ID-check failure, program & verify error, and poor pin contacts.

Dallas DS1977-F5 (Date Code 0623) - 100% Failure Rate - Family code is 21h, which is the designated family code for DS1921.

Teledyne 412H-6 (Date Code 329) - 14% Failure Rate - Open coil resistance and non-switching contacts.

STMicroelectronics L9162 (Multiple Date Codes) - 72% Failure Rate - Frequency channels not switching, no CAN bus switching, and incorrect pin out.

Toshiba TD62786APG (Date Code 1016) - 9% Failure Rate - No switching in one or more outputs.

Texas Instruments OPA627AU (Date/Lot Code 48MK8) - 56% Failure Rate - No output or output distortion.

Xilinx XC4VLX60-10FFG668I (Date Code 1241) - 10% Failure Rate - No output and program error.

Texas Instruments BQ24103RHLR (Date/Lot Code 43K DFF7) - 63% Failure Rate - High output voltage and incorrect status on pin output.

Xilinx XC4VFX40-11FFG672I (Date Codes 1421 and 1429) - 16% Failure Rate - Program error.

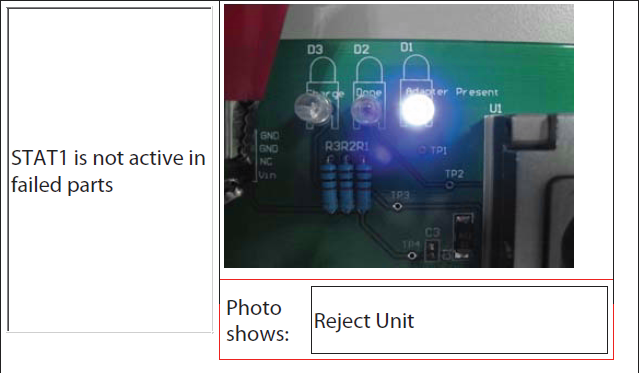

Texas Instruments BQ24103RHLR failure sample - Status1 not active.

Weekly Report Archives

Follow Us on WeChat

Substandard Parts Lists dating back to 2009

White Horse has been publishing Weekly Quality Reports since 2009. Now we open those archives to you.

Simply click on the Weekly Quality Report page on our website and then click the "View our Archive" button to see each posting from 2009 thru 2015.

We hope you find this report informative and usefull for your organization.

All the best,

Mark A. Rinehart
White Horse Laboratories

Notes:

1. Statistics are calculated as a percentage of all lots dis-positioned within the given time period.

2. "Accept" is defined as customer acceptance of report device condition.

3. "Pass" is defined as meeting electrical parameters defined by the agreed upon test plan.
