Week 24 Quality Report

Since 2009, White Horse Laboratories has been publishing our Weekly Quality Reports, which is a listing of the devices that have had over 5% lot failure in electrical testing or the buyer has rejected the lot following results of inspection methods

While this list is not exhaustive (for example, a 5% failure rate may be too high or some buyers may accept devices in a physical condition that others would not), it is intended to an indicator as to what is going on in the market and is a reminder to be aware of the risks of sourcing without adequate quality control measures in place.

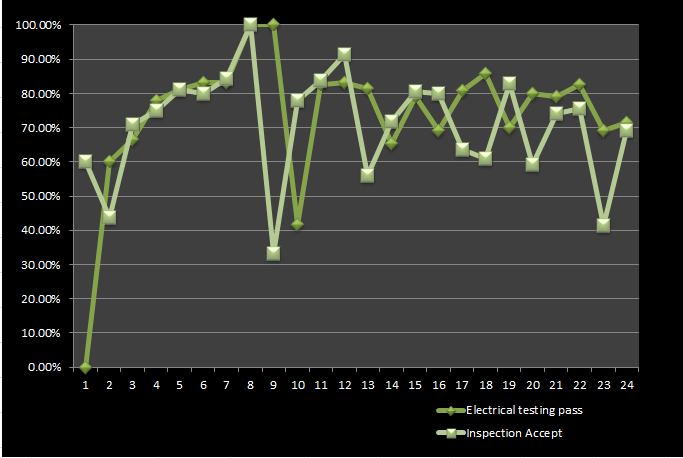

Week 24

Inspection Accept

69%

Electrical Testing Pass

71%

This Week in The Lab...

Updated Holiday Notice

Week 24 Substandard Parts List

Substandard Parts Archive

White Horse Laboratories' Quality Report

Holiday Notice - Dragon Boat Festival

Saturday June 20 - Monday June 22

One of the most exciting holidays of the year is upon us, the Dragon Boat Festival!

The festival is in the honor of the legend of Qu Yuan, he drowned himself in the river rather than see his country occupied and conquered by the State of Qin during China's Warring States period.

The holiday period includes the dragon boat races, now conducted globally, in symbolic reference to the boats that rushed into the river attempting to save Qu Yuan. Narrow boats are brilliantly decorated, all featuring the head of a dragon and beating drums to set the rhythm for the oarsmen.

If you are are anywhere where dragon boats races are held, it's well worth it to go watch and get carried away by the excitement.

CORRECTION! Our Hong Kong will be closed on Saturday, June 20, and Sunday, June 21 and resume regular operations on Monday, June 22.

Our China operations will be closed on Saturday, June 20, thru Monday, June 22, and will resume normal operations on Tuesday, June 23. Of course if anything is urgent, you can always contact me.

Week 24 Quality Report

Substandard Parts List

Xilinx XC5VFX30T-2FFG665I (Date Code 1441) - 8% Failure Rate - Program error and detached cover.

Xilinx XC5VLX30-2FFG676I (Date Code 1445) - 20% Failure Rate- Program error.

American Technical Ceramics 100B2R7CW500XT (Date Code 10+) - 100% Failure Rate - Low Q, quality factor, which was measured below 10,000.

Microsemi SMBJ4729AE3 (Date Code not marked or labeled) - 100% Failure Rate - High Zener voltage, Vz.

Texas Instruments TMS320F243PGEA (Date Code 1112) - 19% Failure Rate - Short pins.

Texas Instruments SN65HVD38082EDR (Lot Code 3CM A6FX) - 100% Failure Rate - No receiver output with driver outputs not following the function table.

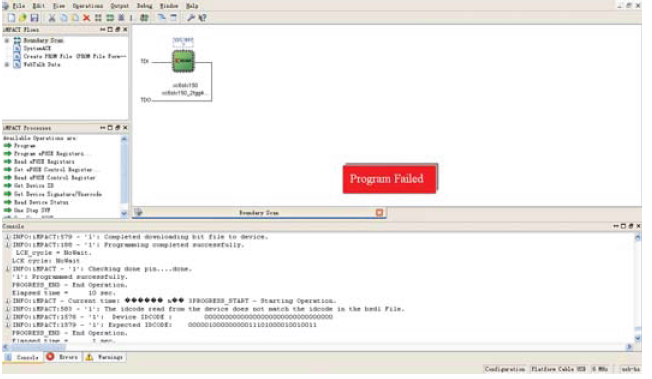

Xilinx XC5VLX30-2FFG676I Failure for Program Error.

Weekly Report Archives

Follow Us on WeChat

Substandard Parts Lists dating back to 2009

White Horse has been publishing Weekly Quality Reports since 2009. Now we open those archives to you.

Simply click on the Weekly Quality Report page on our website and then click the "View our Archive" button to see each posting from 2009 thru 2015.

We hope you find this report informative and usefull for your organization.

All the best,

Mark A. Rinehart
White Horse Laboratories

Notes:

1. Statistics are calculated as a percentage of all lots dis-positioned within the given time period.

2. "Accept" is defined as customer acceptance of report device condition.

3. "Pass" is defined as meeting electrical parameters defined by the agreed upon test plan.
