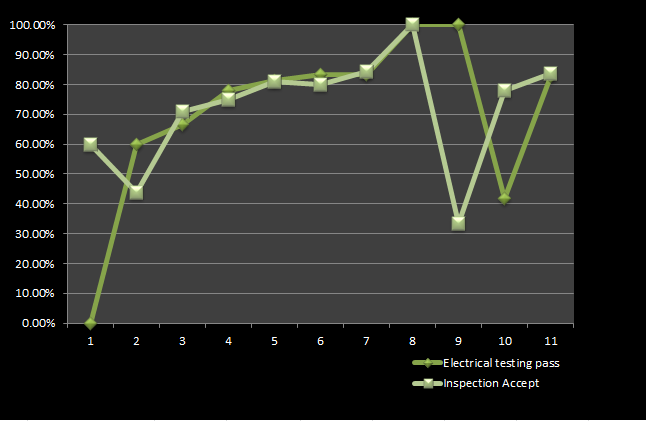

Week 11 Report

Inspection Accept

84%

Electrical Testing Pass

83%

This Week in The Lab...

Archives Now Open

Substandard Parts List

Access our Archives

Substandard Parts Lists from 2009 Now Available

White Horse has been publishing Weekly Quality Reports since 2009. Now we open those archives to you.

Simply click on the Weekly Quality Report page on our website and then click the "View our Archive" button to see each posting from 2009 thru 2015.

White Horse Laboratories' Quality Report

Week 11 Quality Report

Substandard Parts List

Xilinx XC4VLX25-10SF363I (Date Code 1027, 1035, and 1043) - 85% Failure Rate - Program error that VCCINT shorted to GND and wrong ID code.

Xilinx XC2S100-5FGG256C (Date Code 1243) - 5% Failure Rate - Wrong ID and no output.

Xilinx XC4VLX15-10SFG363I (Date Code 1325 and 1337) - 9% Failure Rate - Program error and no output.

Xilinx XC2S600E-6FGG456C (Date Codes 1233 and 1237) - 8% Failure Rate - Program error and no output.

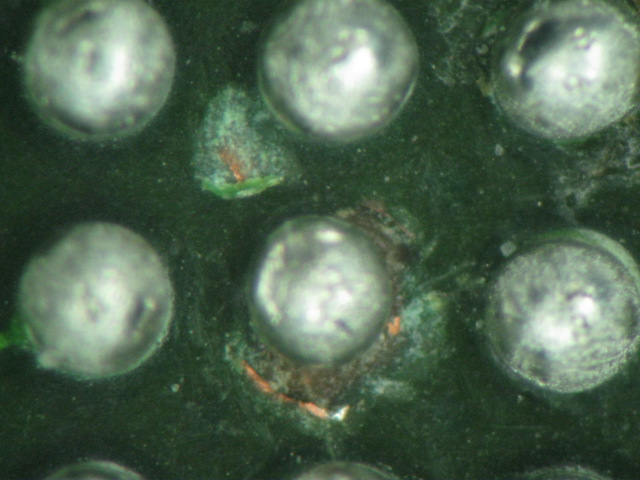

Refurbished Xilinx XC4VLX15-10SFG363I

Notes:

1. Statistics are calculated as a percentage of all lots dis-positioned within the given time period.

2. "Accept" is defined as customer acceptance of report device condition.

3. "Pass" is defined as meeting electrical parameters defined by the agreed upon test plan.

We hope you find this report informative and usefull for your organization.

All the best,

Mark A. Rinehart
White Horse Laboratories
