Week 6 Report



Inspection Accept

80%



Electrical Testing Pass

83%

This Week in The Lab...


White Horse Laboratories' Quality Report

Week 6 Summary



Sorry that we are a bit late issuing the Weekly Reports, but we're back on a roll. Week 6 is here, weeks 7 and 8 will be issued on Thursday, although there isn't much on the Week 8 report as most of the supplier had closed by Valentine's Day and there were only a few orders in the pipeline heading into the Lunar New Year holiday (Spring Festival).



Electrical Testing continued to climb for the fifth consecutive week!



Inspection yields took a moment to catch their breath, dipping by just a point to 80% in Week 6 after reaching 81% in Week 5. Electrical Testing marched on to gain another two points and landed on 83% after climbing to 81% in Week 5.



Just four devices were added to the Substandard Parts List.

Week 6 Quality Report


Substandard Part Listing

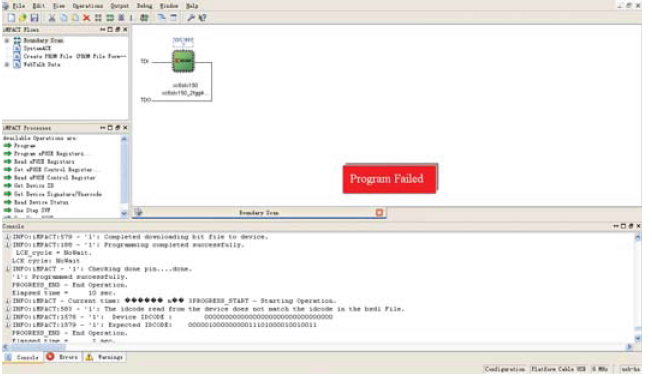

Altera EP2AGX65DF25C4N - (Date Code 1223) - 14% Failure Rate - Program error.



Altera EP2AGX45D2515N - (Date Code 1207) - 13% Failure Rate - Program error with Vcc pin shorted to GND.



Xilinx XC6SLX150-2FGG484I - (Date Code 1437) - 98% Failure Rate - Program error and no output.



Xilinx XC9536-10VQG44C - (Date Code 1023) - 5% Failure Rate - Program error and no output.

Xilinx XC6SLX150-2FGG484I- 98% failure rate for program error and no output.
Notes:

1. Statistics are calculated as a percentage of all lots dis-positioned within the given time period.

2. "Accept" is defined as customer acceptance of report device condition.

3. "Pass" is defined as meeting electrical parameters defined by the agreed upon test plan.

We hope you find this report informative and usefull for your organization.



All the best,

Mark A. Rinehart
White Horse Laboratories
