Week 5 Report



Inspection Accept

81%



Electrical Testing Pass

81%

This Week in The Lab...


White Horse Laboratories' Quality Report

Week 5 Summary

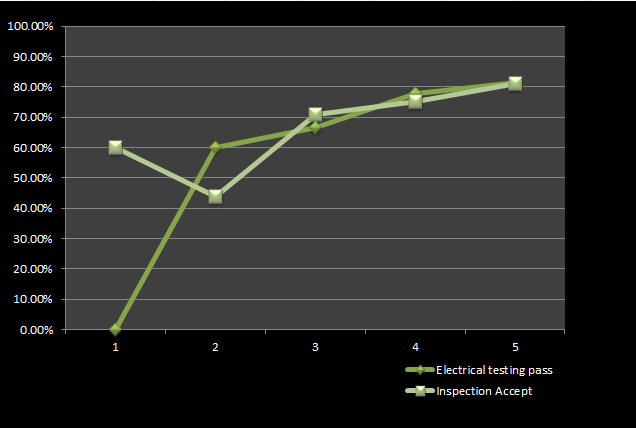

The roll continued! Another week of improving yields in Electrical Testing and Inspection were seen in Week 5.



Inspection yields set the pace by climbing another 6 points to land at 81% in Week 5 and Electrical Testing soldiered on to gain another three points and land on the same spot, matching that 81% in Week 5 after posting 78% in Week 4.



Not surprisingly, there are fewer new additions to the Substandard Parts List with only two entries.

Week 5 Quality Report


Substandard Part Listing



NXP SCC68681E1N40- (Date Codes 0415 and 0512) - 48% Failure Rate (DC 0415 was 24%, DC 0512 was 72%) - Shorted pins and broken protection diodes.

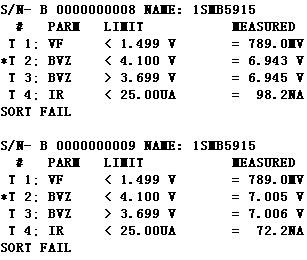

ON Semiconductor 1SMB5915BT3G - (Date Code not marked or labeled) - 100% Failure Rate - The zener voltage, Vz, specification is 3.7V-4.1V and was measured at 7V.

ON Semiconductor 1SMB5915BT3G - 100% failure for high zener voltage, Vz, which was measured at 7V with a max spec of 4.1V.
Notes:

1. Statistics are calculated as a percentage of all lots dis-positioned within the given time period.

2. "Accept" is defined as customer acceptance of report device condition.

3. "Pass" is defined as meeting electrical parameters defined by the agreed upon test plan.

We hope you find this report informative and usefull for your organization.



All the best,

Mark A. Rinehart
White Horse Laboratories
