Newsletter Top Bar

Olympus Logo



Video

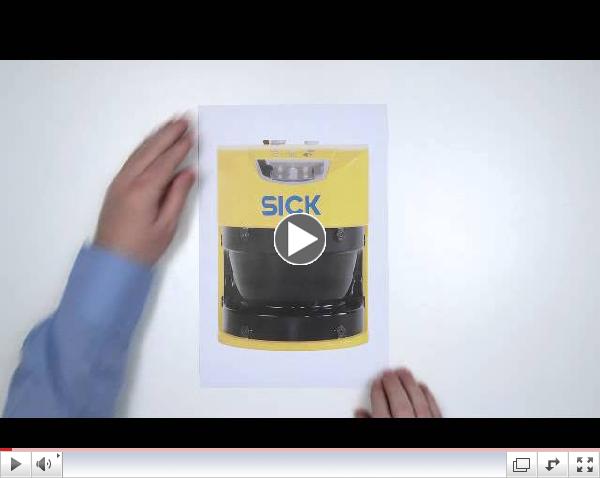

S300 Mini Safety Laser Scanner
"That's Cool"

A 240 year old doll that can write, a clockwork creation by Pierre Jaquet-Droz, a Swiss watchmaker


Need a Break?

  SICK Break



 November 4 - 8, 2013



Robot Event



Join us



Beer & Robots



Micro Brew in Portland, OR

October 30th



▪ Live Robots

▪ Presentations
Hands-on Demonstrations



Request information



Follow Us



    Like us on Facebook   View our videos on YouTube  View our profile on LinkedIn  Olympus Blog







OC3D We have Solid Models available to download for many of our products, look for this symbol on our for a link.





Your Local Automation Partner


1D Max Video

Join Our List
Join Our Mailing List
Employee Spotlight: Jason Dye



Jason provides technical support to customers out of the Beaverton office and is a mister fix-it at home, but we also learned about Jason's other talents.





read more about Jason >

Gulf Division adds Cognex



Olympus Controls is pleased to announce that the Cognex Machine Vision and Industrial ID product lines have been expanded to include their Gulf Division.



"The Gulf Division is now a full Cognex Distributor with Automation Solution Provider (ASP) status", said Jason McDaniel, Gulf Division Manager.



Parker MPW Series Servo Motors
Stainless Steel Brushless Servo Motors

The new MPW Series extends the MPP motor family to meet the needs of those applications exposed to high pressure, highly caustic, washdown environments. Specific applications can be found in such markets as Food and Beverage, Pharmaceutical, Packaging, and any other application that may be exposed to a harsh environment (salt, fog and humidity).

  • 6 models covering three frame sizes of 90, 115, and 142mm
  • Sealed to IP69K for 1200 psi washdown requirements
  • Potted stator design for improved thermal efficiency
  • 35 to 170 in-lbs continuous torque (230 and 460VAC supply)
  • Options include high resolution encoders, resolvers, and 24 V brake
  • Cable options available to plug and play with competitor drives
SICK S300 Mini Safety Laser Scanner
Smallest safety laser scanner on the market
The S300 Mini safety laser scanner is the smallest and lightest safety-rated laser scanner on the market, and offers a unique set of functional capabilities to solve the most challenging safety applications. The S300 Mini also has a 2 meter safety field range, a scanning angle of 270 degrees and up to 16 switchable field sets.
  • Very compact design
  • Triple field sets (1 protective field and 2 warning fields
  • Up to 16 field sets
  • Up to 32 monitoring cases
  • 270° scanning angle
  • 2 m protective field range
  • Vertical and horizontal protection



Vision Systems with Autofocus Technology
Integrated autofocus for the In-Sight 7010 Series

The rugged In-SightŪ 7010 vision system offers integrated autofocus technology for delivering the most accurate and reliable inspections on the fastest production lines in the harshest, most demanding environments.
You can easily set and save the optimal focus values associated with the inspection of each part on your line. This autofocus feature simplifies set up and is ideal for production situations requiring regular part changes or projects that require the vision system to be placed in hard-to-reach spaces.

Novakon HMIs
Enrich your experience
Novakan HMIsNovakon's easy-to-use interface enhances user experience by providing straightforward and intuitive ways of operating the machine.  Their products are the most attractive in the market with a textured look pushing the horizon for a new generation of HMIs. In addition to the powerful features and high performance, Novakon focuses on developing user experience to ultimately set a new standard for HMIs.
  • NO7 - 7", 800x480 TFT with 4-wire touch panel, ARM9 400MHz, 128M DRAM, 128M NAND Flash
  • N10 - 10.2", 800x480 TFT with 4-wire touch panel, ARM9 400MHz, 128M DRAM, 128M NAND Flash
  • A12W - 12.1", 1280x800 TFT with 5-wire touch panel, Intel Atom D2550 1.8GHz, Dual Core Processor, 2GB DDR3
  • A15W - 15.4", 1280x800 TFT with 5-wire touch panel, Intel Atom D2550 1.8GHz, Dual Core Processor, 2GB DDR3
Delta Tau CNC Solutions
Advantage 900 Basic Package

The Advantage 900 is a flexible CNC system able to run different types of Milling or Lathe machines. It consists of a PC in a durable metallic housing with keyboard and touchpad.  The main station features a 15" active matrix TFT color display with 1024x768 XGA Resolution.



Optional features include a CNC pendant with a handwheel for manual jogging, and other buttons for feed hold, loading part programs, homing, and other standard CNC functionality. The user can interface this product with Turbo PMAC or Power PMAC. The user must combine this product with a controller in order to control systems.



more information

Line Card                          Brochure

Line Card

Olymps brochure

 Olympus-Controls' Brochure



Technologies

Machine and Motion ControlMechatronicsMachine Vision and ID SolutionsSafety and SensorsRobotics & Conveyors
