Video

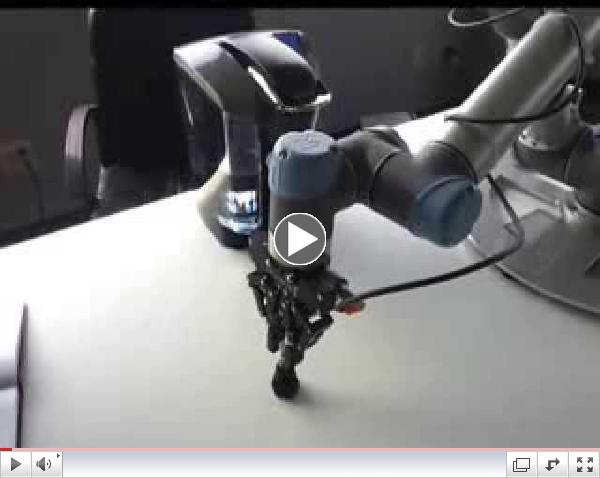

Universal Robot Video
Coffee provided by our human collaborative robot.  No safety system needed!
Coffee provided by our human collaborative robot. No safety system needed!



"That's Cool"
Mousetrap Fission
An array of 138 mousetraps are set off in a chain reaction. Ping-pong balls help visualize both neutrons and the release of energy. Shot in 600 fps and 1000 fps.

Reshoring



Coming Home

Reshoring

The Economist - A growing number of American companies are moving their manufacturing back to the United States.



 read article





Robot Event Series

Sake



Join us



Sake in Fremont, CA

September 18th



Micro Brew in Portland, OR

October 30th



▪ Live Robots

▪ Presentations
Hands-on Demonstrations



Request information



Follow Us



    Like us on Facebook   View our videos on YouTube  View our profile on LinkedIn  Olympus Blog





Brochure

Olymps brochure



Olympus-Controls' Brochure



Line Card



Line Card



Olympus-Controls' Line Card



OC3D We have Solid Models available to download for many of our products, look for this symbol on our for a link.

Technologies

Machine and Motion Control

Machine & Motion Control

Mechatronics

Mechatronics

Machine Vision and ID Solutions

Machine Vision & Barcode

Robotics & Conveyors

Robotics & Conveyors

Safety and Sensors

Safety & Sensors







Your Local Automation Partner


1D Max Video

Join Our List
Join Our Mailing List
Employee Spotlight: William Dryden, Application Technician

William Dryden

If you get a custom assembly from Olympus Controls, the chances are good that William had something to do with it.





read more about William >

Unrivaled Power Density

High Force Electrocylinder and Small Frame Sizes
The Parker ETH electrocylinder closes the gap between pneumatic and hydraulic drives.  It is suitable to replace those in many aplications and simultaneously increase the reliability of the production process.  Taking the costs for air and oil into consideration, you will fiind that in most cases an electromechanical system such as the ETH elctrocylinder offers the most economical solution.
ETH Electrocylinder
  • Strokes up to 2000 mm
  • High traction/thrust force up to 56 000 N
  • Repeatability up to 0.03 mm
  • Speeds up to 1.7 m/s
  • Frame sizes ETH032, ETH050, ETH080, ETH100
more information
3-Finger Adaptive Robot Gripper
Give a Hand to Your Favorite Robot

Designed for applications dealing with a wide variety of parts, the 3-finger adaptive robot gripper represents a solution to improve process flexibility and consistency.  This robotic hand gives "hand-like" capabilities to robot arms in advanced robotic applications and industrial automation such as robotic welding, machine loading/unloading, bin picking and research. 3 finger gripper

Robotiq's 3-finger adaptive grippers offer flexibility for many applications because it can grasp objects with many different shapes while remaining simple to implement and control.
  • Handles a wide variety of part geometries and sizes
  • Straightforward control over fingers' position, speed and force
  • Compatible with all major robot manufacturers
  • Communicate with robot controller over: Ethernet/IP, TCP/IP, DeviceNet, CANopen, EtherCAT, Modbus RTU
Extreme Force Electromechanical Cylinder
A New Level of Electric High Thrust Cylinders

Parker's Series XFC is designed to provide heavy machine builders a high force electro-mechanical solution offering long life, minimal maintenance, and low operating costs while still maintaining structural rigidity.

For applications where high loads and/or high speed motion are required, roller screws offer a very attractive solution.  Servo motors and controls feature simplified programming with auto-tuning capabilities reducing installation start up time and expenses. XFC actuator
  • Speeds up to 40 Inches per second
  • 178kN Continuous Thrust (40,000 Pounds)
  • Parker Bayside Stealth Gearhead Direct Mount
  • Parker MPP Max Plus Plus Motors Standard
  • Strokes from 50mm to 2000mm in 1mm increments

more information
deTec4 Core Safety Light Curtain
Efficient Integration, Quick Installation, Simply Safe SICK deTec4 Core

With the deTec4 Core, SICK sets a new standard in safety light curtains: for protection without blind zones, for automatic distance measurement, commissioning without configuration, and diagnostic codes that can be interpreted directly.

The design focuses on the core essentials, making it cost-effective, yet state-of-the-art.  It offers a unique combination of features to make installation and setup quick and easy.  The new deTec4 Core provides maximum safety in a new sleek design from the global market leader in safety light curtains.
deTec4 Core Video

  • Absences of blind zones
  • Resolution of 14 mm to 30 mm
  • Protective field height of 300 mm to 2100 mm
  • Automatic range measurement of up to 10 m
  • Enclosure rating IP65/IP67

more information
Gocator 2300 3D Smart Sensor
All-in-One 3D Megapixel Smart Sensor

The Gocator 2300 family of 3D Megapixel smart sensors reduce the cost of factory automation by making product validation easy to implement and maintain.  Simple to integrate and industrially designed for the rugged needs of the factory floor, Gocator 3D smart sensors are packed with built-in tools that can have a big impact on your bottom line. Gocator 2300
  • Pre-calibrated to scan micron-level details
  • High speed & low latency
  • Setup & control via Web browser
  • Built-in tools, no programming
  • Single sensors require no additional controllers, amplifiers or PCs
EtherNetIP

This new capability enables the Gocator smart sensor to interface to a PLC through EtherNet/IP protocol.  EtherNet/IP is an industrial protocol that allows bidirectional data transfer with PLCs and the Gocator 2300 family.

SmartMotor Numeric Control

Make Your SmartMotor a CNC Solution



SMNC™, Moog Animatics' G-Code based servo motion control software, uses numeric control to deliver multi-axis contouring for your Moog Animatics SmartMotor™ applications.  SMNC provides a set of features that are comparable to any CNC system, including a user interface that is similar in appearance to a traditional CNC system.



With SMNC you can define up to 30 inputs to perform SMNC functions, such as Start, Reset, and Feed Hold or as interlocks as well as define up to 10 different tools.



SMNC standard features include:

SMNC
  • Linear and circular motion control of multiple axes
  • Configures SmartMotors across multiple serial ports
  • Displays source code during execution
  • Large numerical display
  • Duplication of axis motion for gantry systems
  • Converts CAD-DXF files into motion control G & M Codes
  • Smooth control of acceleration and deceleration for sensitive curvilinear motion
  • User-definable M-Codes for digital output
  •

    more information
