 EGC-HD Electric Heavy-duty Axis
Multi-axis modular system for 2D and 3D handling systems
EGC model toothed belt and ball screw electric actuators from Festo deliver high speed, response, and dynamic rigidity. The new EGC-HD (heavy duty) model builds on those capabilities and adds load-bearing capacity to its specifications - twice the load bearing of the EGC actuator.
The EGC-HD electric actuator features recirculating ball bearing guides that helps absorb lateral forces and torques. With a toothed belt or ball screw and two parallel guides, the EGC-HD is perfect for cantilevered systems. The toothed belt model offers flexible motor connections on all four sides.
Specially developed profiles with optimized cross section give the EGC-HD maximum rigidity and load capacity. The EGC-HD offers a more cost effective solution that two parallel axes.
more information >
|
 MagneMotion Synchronization Solution
MagneMover® LITE incorporates Linear Synchronous Motor (LMS) technology
MagneMotion's LMS position sensing technique is unique in the industry (patent pending). Rather than relying on external sensors to handle motor synchronization, a transducer attached to the moving element induces a signal into the motor winding (stator) which is picked up by the motor control system. This induced signal enables the control system to determine the exact position of the moving element to within a fraction of a millimeter (fraction of a centimeter for larger systems) and commutate the motor accordingly. Because the sensing is done through the motor stator winding there is no reliance on external sensors. There is no reason why the system should ever experience synchronization problems. |
 deTec4 Core Safety Light Curtain
Efficient integration, quick installation, simply safe
With the deTec4 Core, SICK sets a new standard in safety light curtains: for protection without blind zones, for automatic distance measurement, commissioning without configuration, and diagnostic codes that can be interpreted directly.
The design focuses on the core essentials, making it cost-effective, yet state-of-the-art. It offers a unique combination of features to make installation and setup quick and easy. The new deTec4 Core provides maximum safety in a new sleek design from the global market leader in safety light curtains.
- Absences of blind zones
- Resolution of 14 mm to 30 mm
- Protective field height of 300 mm to 2100 mm
- Automatic range measurement of up to 10 m
- Enclosure rating IP65/IP67
|
 All-in-one Control
Micro PLC with embedded analog and network features
Many micro PLC applications require functionality beyond CPU processing and digital I/O handling; they also require Ethernet communication as well as analog I/O processing. FX3GE was created to meet these needs, combining embedded Ethernet and analog I/O with a powerful FX3G CPU. Now you can utilize a micro PLC capable of handling a wide variety of applications right out of the box, with no extra hardware costs.
- 3rd Generation Compact PLC
- Embedded Ethernet communications port
- Embedded analog I/O (2 inputs, 1 output)
- Dual bus architecture- 32k steps of internal program memory
- Integrated real-time clock
- Easy programming with large instruction set and table positioning configuration
- Built-in USB port for the programming communication function to enable high-speed communication at 12Mbps.
|
Solutions In Motion
Mitsubishi Mobile Showroom returns in August
Gibson Engineering just wrapped a week of customer visits with the Mitsubishi Mobile Showroom with its full array of motion control solutions. Due to the success of these visits and customer demand the 53-foot long Solutions in Motion showroom will be returning in August.
Solutions In Motion has dual expandable walls, creating a space of more than 510 square-feet that can comfortably accommodate 25 people. Interactive demonstration pods in the Solutions Gallery with 32-inch high-definition video monitors display Mitsubishi Electric PLC products, servos, VFDs, HMIs and networks in a wide range of manufacturing applications.
Gibson Engineering will be touring August 12th - 14th
Contact Us to have Solutions In Motion brought to your facility |
 Trending on Twitter
|
|
|
|
|
|
|
|
|
Video

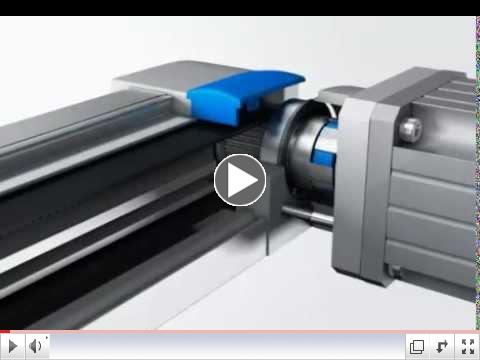

 | | Festo EGC-HD |
|
 The Latest on Facebook
|
Video
 | | deTec4 Core: The new safety light curtain generation from SICK |
|
|
Training & Events
Cognex In-Sight Basic Training
Cognex In-Sight Advanced Training
Mitsubishi PLC Fundamentals Training
Mitsubishi GX Works2 Training
Mitsubishi Robot Training
|
|
