Thomas & Betts introduces the enhanced Elastimold® 200 Amp Loadbreak Elbow (15kV & 25kV series). Over 50 years of innovative design and manufacturing experience directly address the end user's needs. The newly enhanced design incorporates new safety performance features, increases range flexibility and improves life cycle cost reduction.

Enhanced SAFETY

• Improved insulation for 15kV elbows
• Rigid probe support to ensure proper switching
• No stick interface when used with Elastimold® bushings (NEETRAC* tested)
• Robust stainless-steel pulling eye
• Dual grounding eye positions

 Increased FLEXIBILITY

• Additional sizes available
• Improved wider cable ranges
• Optional integral jacket seal available

 Improved LIFE CYCLE COST REDUCTION

• Optimized for switching operations
• Lifetime ease of operation due to non-stick interface when paired with Elastimold® insert
• Improved seal system for traditional and jacket seal options

 Additional VALUE

• MADE in the USA
• Reduced lead times
• Easy order system

Catalog Modifications

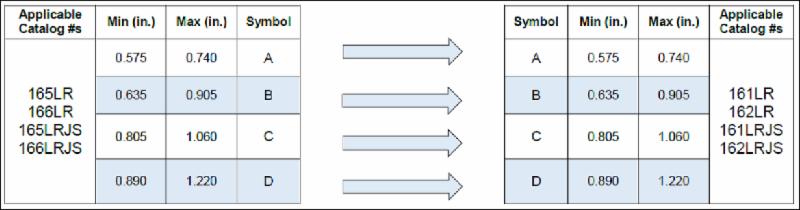

15 kV will be the 161/162LR series:

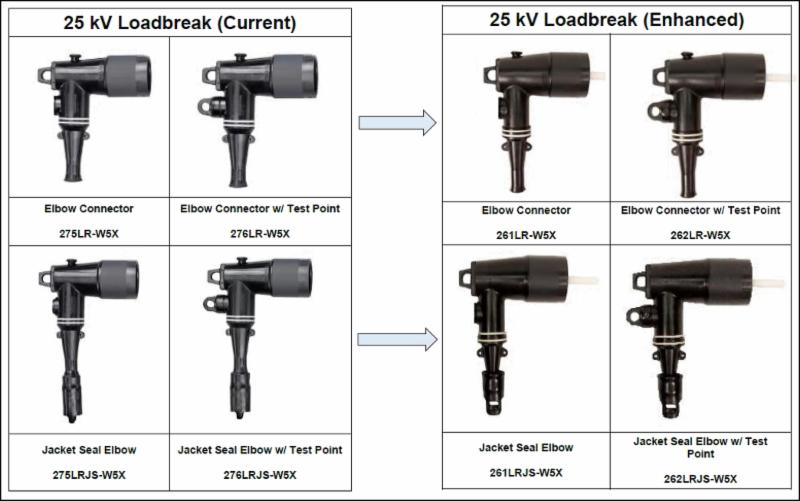

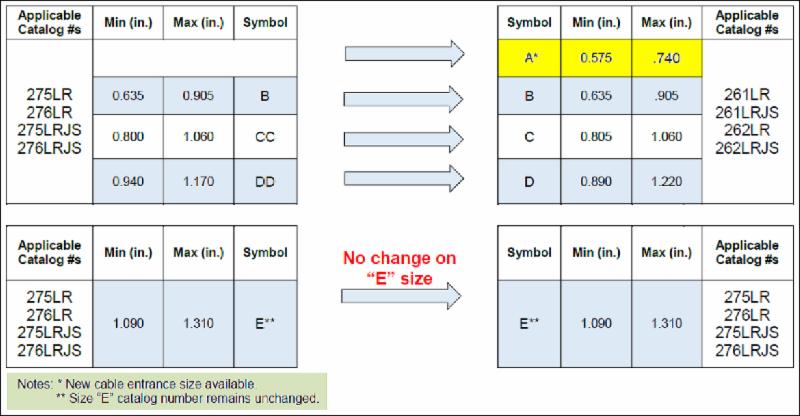

25 kV will be the 261/262LR series:

Timing and Availability

Phase One: The new series of 15kV jacket seal elbows and 25kV standard elbows became available January 1, 2015. The current series of 15kV jacket seal elbows and 25kV standard elbows will become obsolete at the end of 2015.

Phase Two: The new series of 15kV standard elbows will be available in the fourth quarter of 2015. The current series of 15kV standard elbows will become obsolete at the end of 2016.

Please contact your local RESCO representative to review in greater detail.
