All Mainers are familiar with the VHF band used every day to communicate bridge to bridge.  VHF stands for "Very High Frequency" and covers the spectrum of radio wave frequencies from 30 MHz (megahertz) to 300 MHz .

"VHF" is common language to us all, but what does it really mean?

The frequency of a radio wave is the number of complete wavelengths that pass a given point in a second.  For example when you say that a wave has a frequency of 1-Hz you are saying that it has one cycle per second.  A megahertz designates a million cycles per second.  Within the VHF range, the wave is cycling between 30 million and 300 million cycles per second.

VHF waves, unlike longer waves, are not strongly reflected from the atmosphere; therefore, they do not bend readily around the Earth's curvature and cannot be transmitted beyond the horizon. Their range is further limited by their inability to pass through hills or large structures. Accordingly, VHF waves are limited to use in short-range, line-of-sight communications, including radio and television broadcasting, and in electronic navigation systems.

Like water waves, radio waves radiate away from a point of origin. When radio waves are generated, they spread out from the transmitting point in all directions at the speed of light-about 186,000 miles per second. When the waves encounter a receiving antenna, they cause electrons in the antenna to surge back and forth which are interpreted a data.

Marine VHF radio refers to the radio frequency range between 156.0 through 162.025 MHz

Typical marine use VHF channels and their frequency:

The VHF band is not only used in marine radio communications.

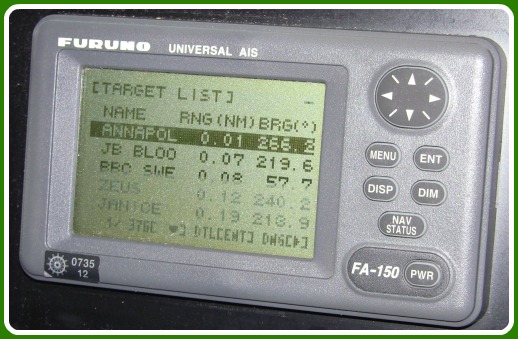

Automatic Identification System (AIS)

AIS operates in the VHF band. The two frequencies used are 161.975 and 162.025 MHz.

The AIS regularly  transmits every 2 to 10 second the vessel's:

• MMSI number
• Navigation status, e.g. 'at anchor' or 'under way'
• Ground speed, from 0 to 102 kts in steps of 0,1 kt
• Rate of turn, 0 to 720 degrees per minute
• Position
• Heading and Course over Ground
• Time stamp

Also, every six minutes the AIS system transmitters :

• MMSI number
• Call sign
• Ship's name
• Type of vessel
• Dimensions of the ship
• Draft
• Destination
• Estimated time of arrival (ETA) at destination (captain's discretion)

Your AIS broadcasts all the information above while alternating between the two channels.

Limitations

VHF radio waves can only travel in a straight line which in practical terms, is the "line of sight" of those waves.   For example, the distance from my antenna to your antenna must be in a straight line if communications it to happen.  This is primarily caused by the curvature of the earth.

Other things which can adversely affect the transmission range od a VHF signal are:

• weather
• land masses such as hills.

This is often seen on the Tenn-Tom Waterway where AIS signals from other boats can fade in and out depending on how many hills are blocking the transmission.

To calculate how far a VHF signal can reach in statute miles,use this formula

distance in sm = 1.415 ∗ √height of antenna

In easy term, an AIS signal or a VHF radio call on a Higman Towboat with an antenna height of 38 ft. should equal:

1.415 * square root of 38 = 1.415 * 6.164

answer.....8.7 miles.....with no obstructions and good weather!
